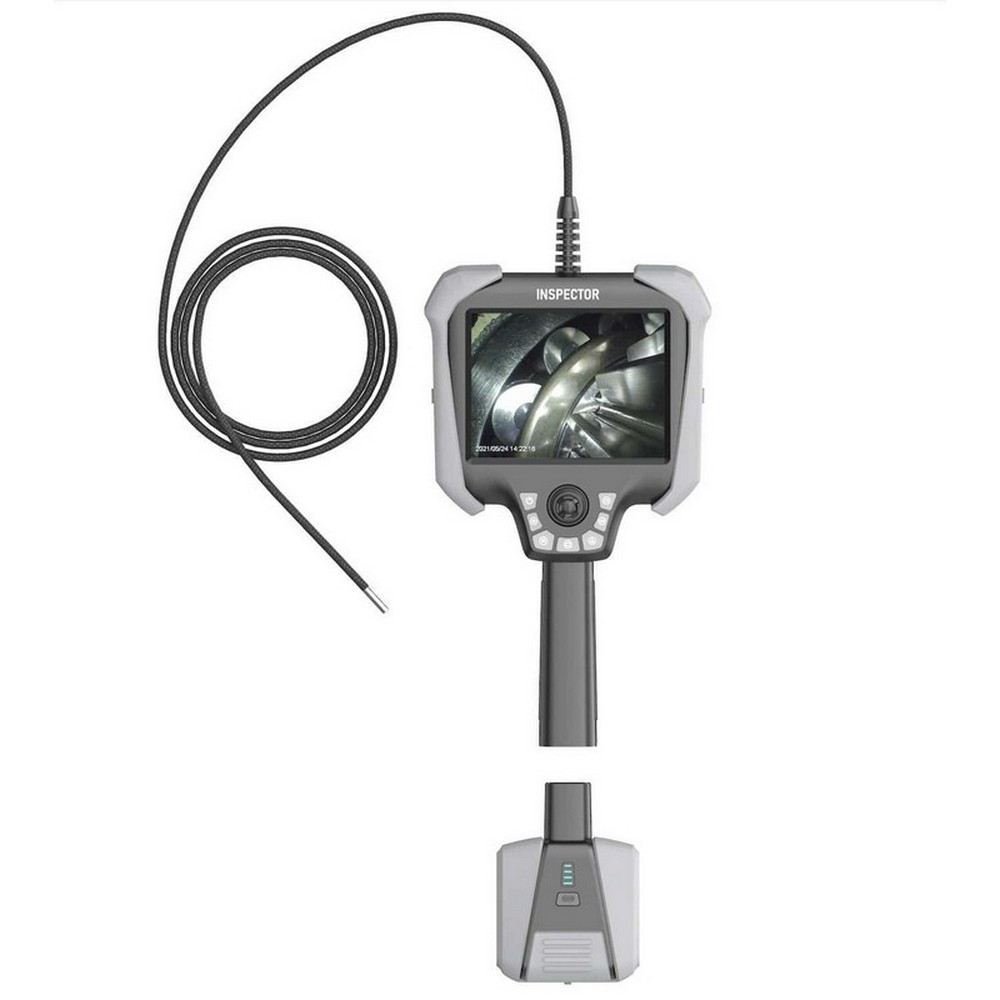

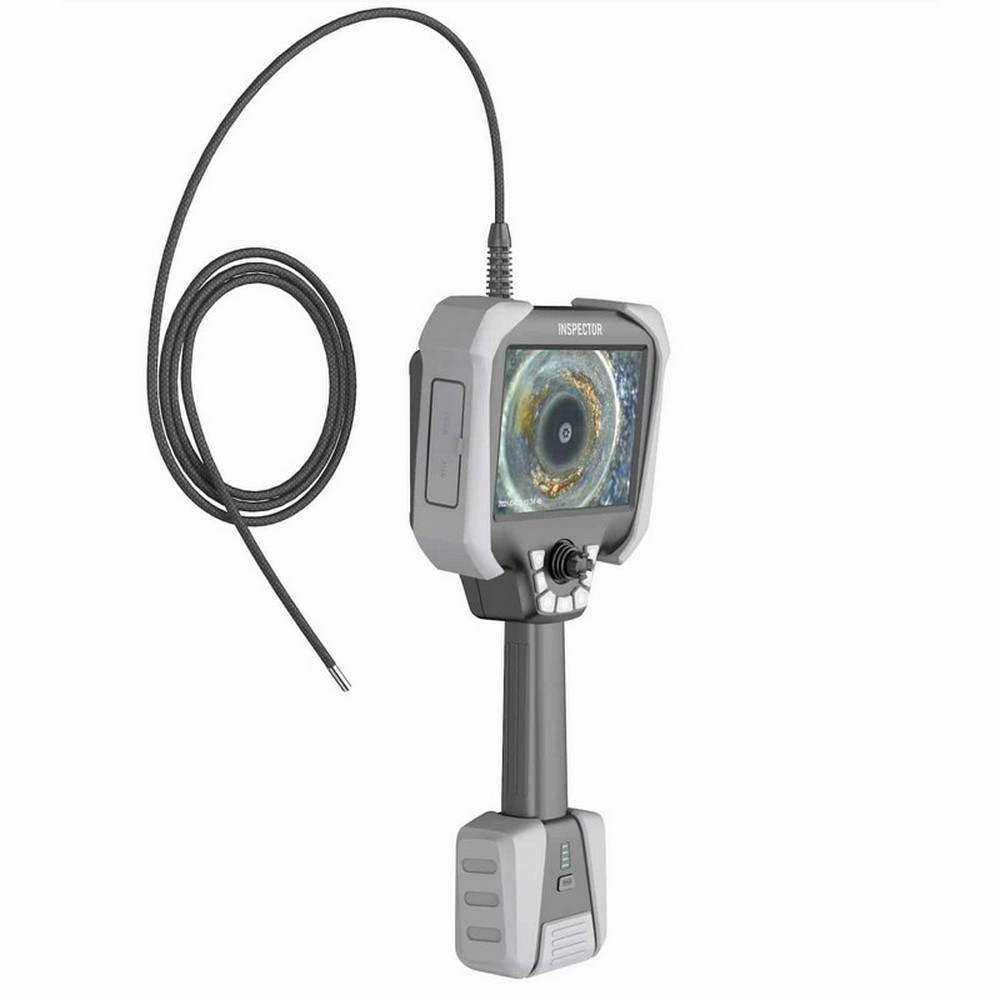

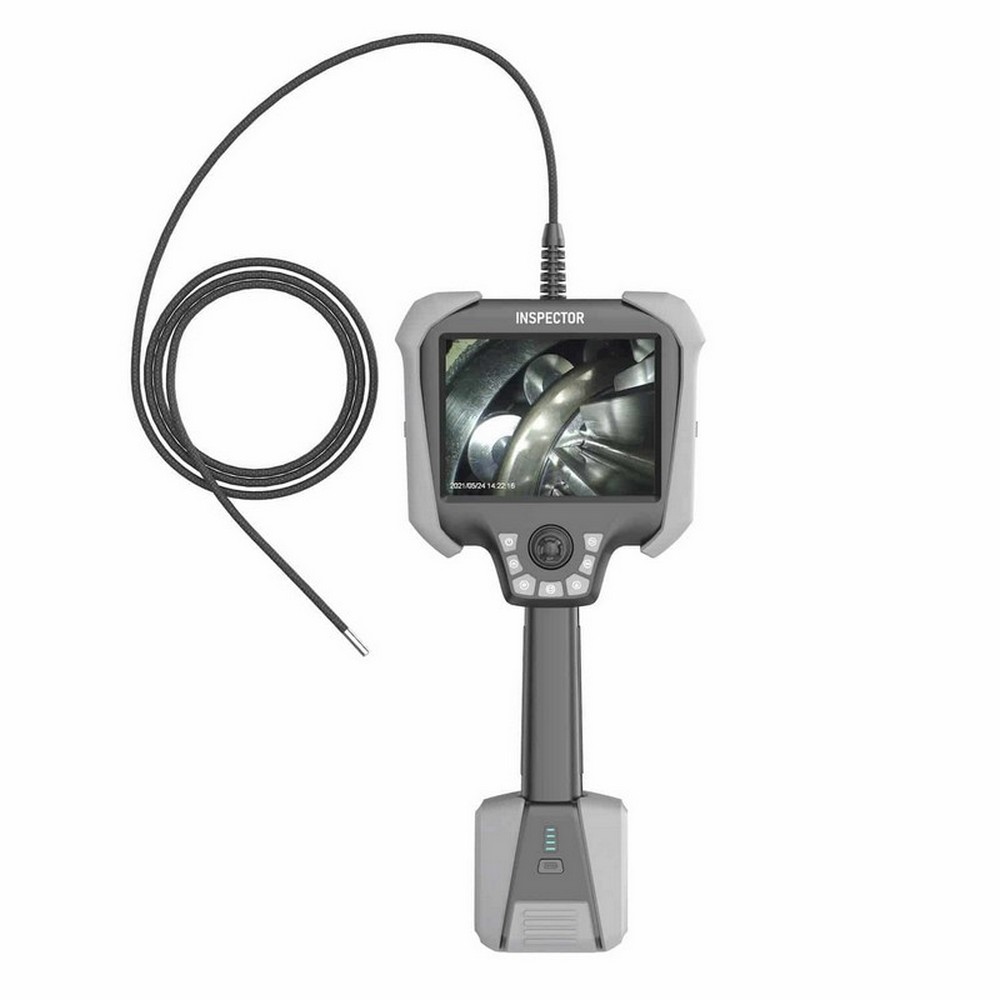

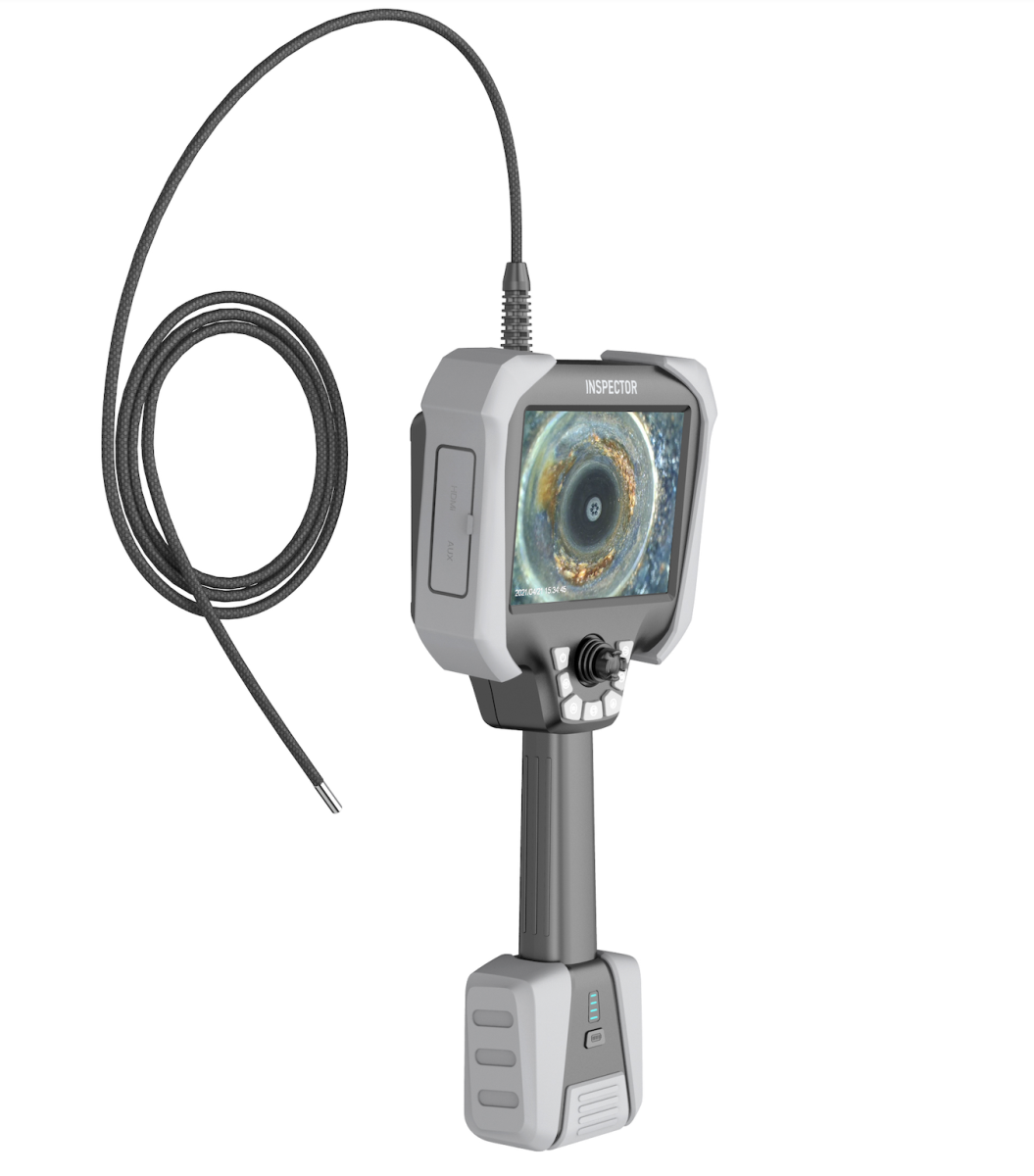

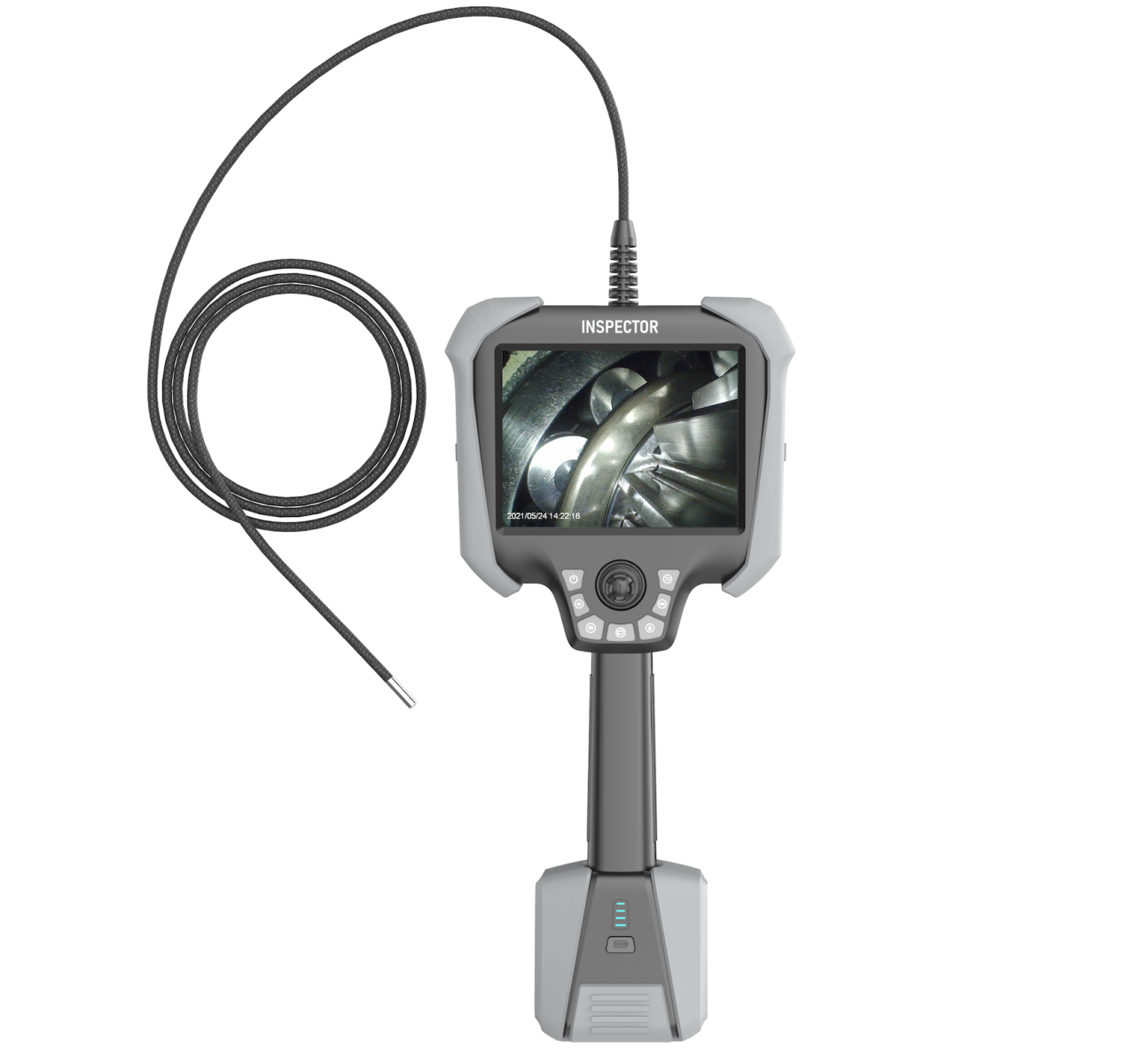

RVI Infinity Innovation Inspector PRO /videoscope

Inspector PRO
Designed for industrial non-destructive inspection
  • Real HD image quality
  • 6.5-inch touchscreen
  • All way smooth and precise joystick articulation
  • High power LED with fiber output
  • More probe options from 1.0mm to 8.4mm diameter, length from 1M to 10M
  • Probe fast exchange design, lower repair cost and fast service
  • Portable and robust handheld design, easy operation
CHARACTERISTICS
Construction
flexible
Applications
industrial, for remote visual inspection, for pipe inspection, for heat exchangers, for turbine engine inspection, for automobiles, engine, gearbox, welding, for corrosion inspection, for defect inspection, for visual inspection quality control
Other characteristics
portable, LCD display, USB, articulated, with measuring function, with memory card, waterproof, 4-way, infrared, interchangeable probe, with 4-way rotation, with joystick, long-distance, UV, cost-effective
Diameter

Min.: 0.9 mm (0.04 in)

Max.: 8.4 mm (0.33 in)

Cable length

Min.: 1 m (3'03")

Max.: 10 m (32'09")

DESCRIPTION
Inspector Pro industrial videoscope\borescope\endoscope
The latest technology of HD imager + freely interchangeable probes
HD with the latest technology
Video imaging components
Equipped with the latest technology of high-definition video imaging components, resolution options from 1280x720 up to 1920x1080, available pixles up to 2 million,high-intensity power light source and excellent visual processor, so as to provide you with clearer still pictures and videos to help operators determine defects faster and more accurately.
Advanced probe freely interchangeable technology
The probe can be replaced quickly according to different working conditions. The diameter of the probe are available of 1.2mm,1.6mm,2.0mm,2.4mm,2.8mm,4.0mm and 6mm. Different working lengths are available from 2M to 10M. Save equipment purchase costs and improve after-sales service efficiency
Powerful and portable

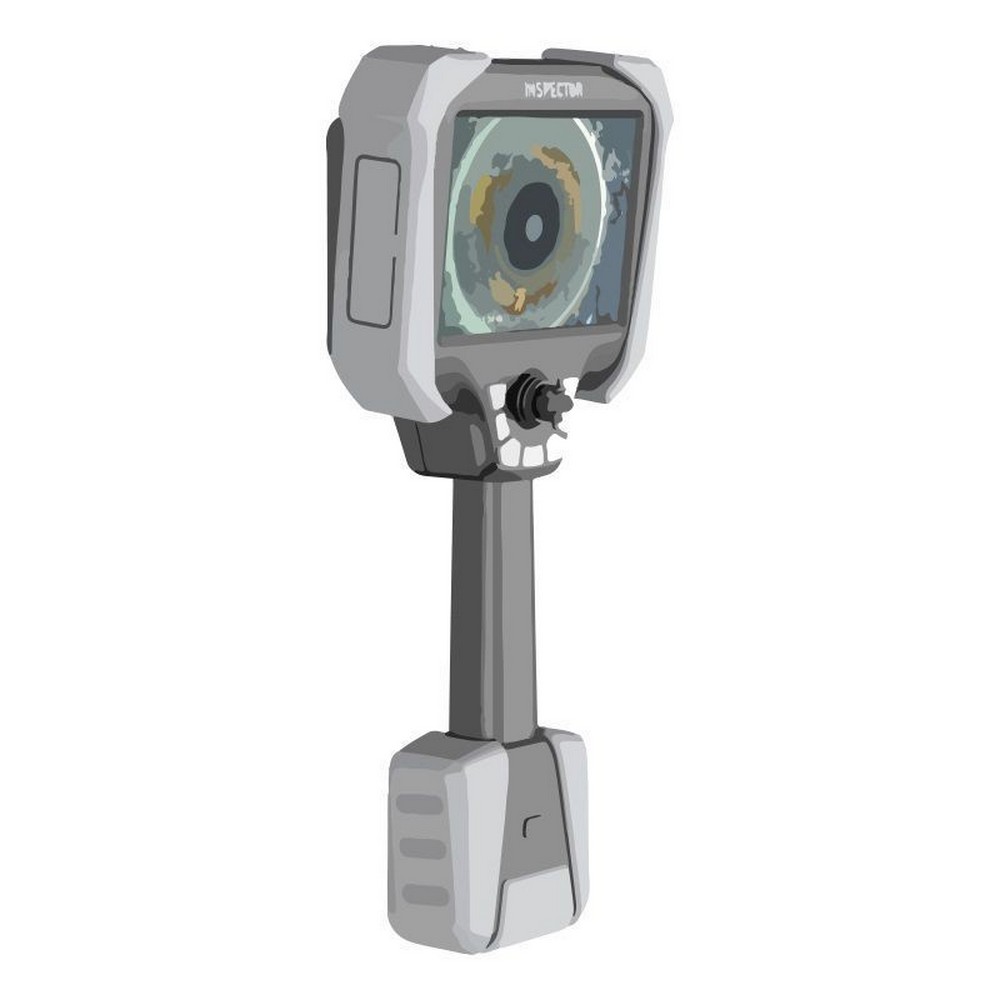

Inspector Pro has built-in Intel high-performance processor, large-capacity high-speed memory, 6.5-inch touch screen IPS wide-angle high-definition LCD screen, resolution up to XVGA as 1024x768, which can easily handle various complex tasks, the system adopts durable and ergonomically designed integrated handheld operation. The overall easy operation is convenient. Store and carry.
High-Power High-brightness LED rear design
The use of high-power and high-brightness LED lighting source design guarantees the lighting requirements for visual inspection in large spaces. For example, inside the gearbox of a large wind turbine or inside a gas turbine, it has a wider application space than traditional LED front light output design.
Flexible single-finger articulation technology
The latest single-finger articulation technology is easy to operate while ensuring precise control of the guidance. Compared with the traditional articulation technology, it is more accurate and stable. The new design ensures stable performance of the articulation mechanism system, which is easy to repair and reduces the maintenance cost.
Field-based industrial design
Take into account the maintenance cost control in the later period
The system is built in industrial grade materials and durable design
Perfectly face to the harsh industrial site testing environment
At the same time, reduce the maintenance cost of the equipment in the later stage
Reduce the difficulty and risk of maintenance personnel
Intuitive operation interface
Interactive software tailored specifically for endoscopic visual inspection
The most commonly used functions are displayed on graphical buttons to facilitate the operator to quickly find the desired function and reduce the cost of learning, which is easy to use and practical.
Excellent depth of field Lens design

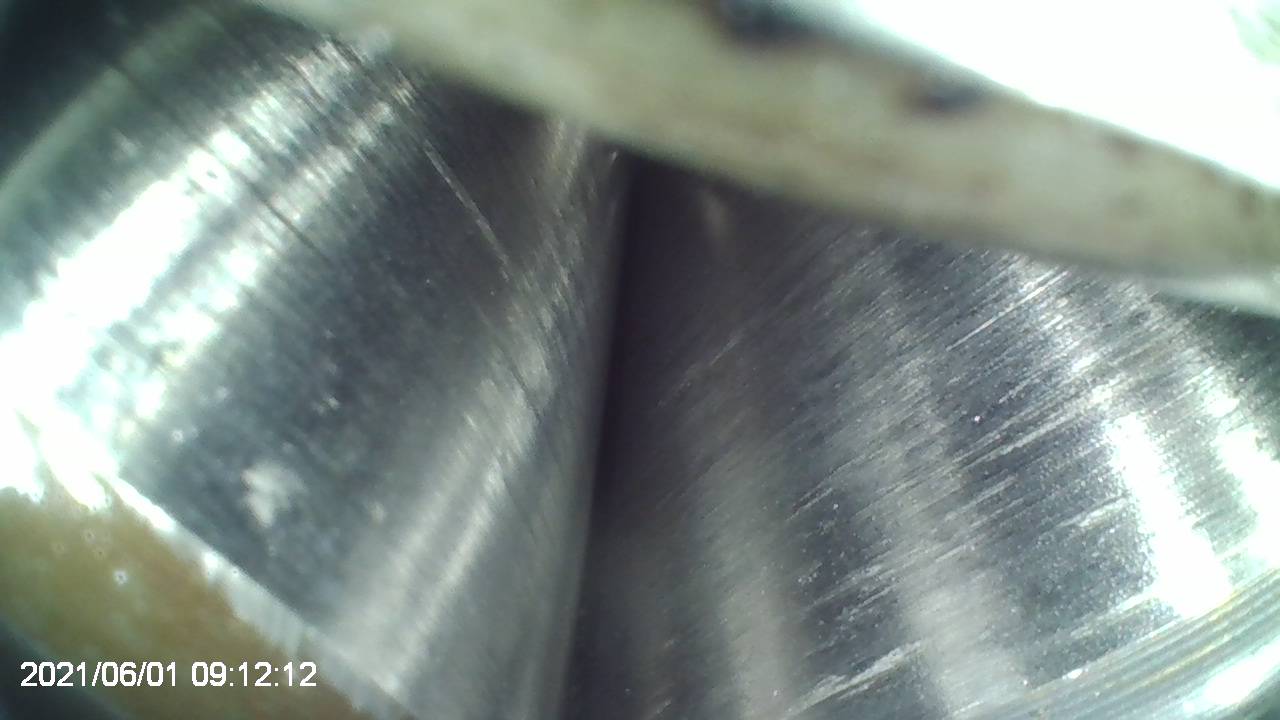

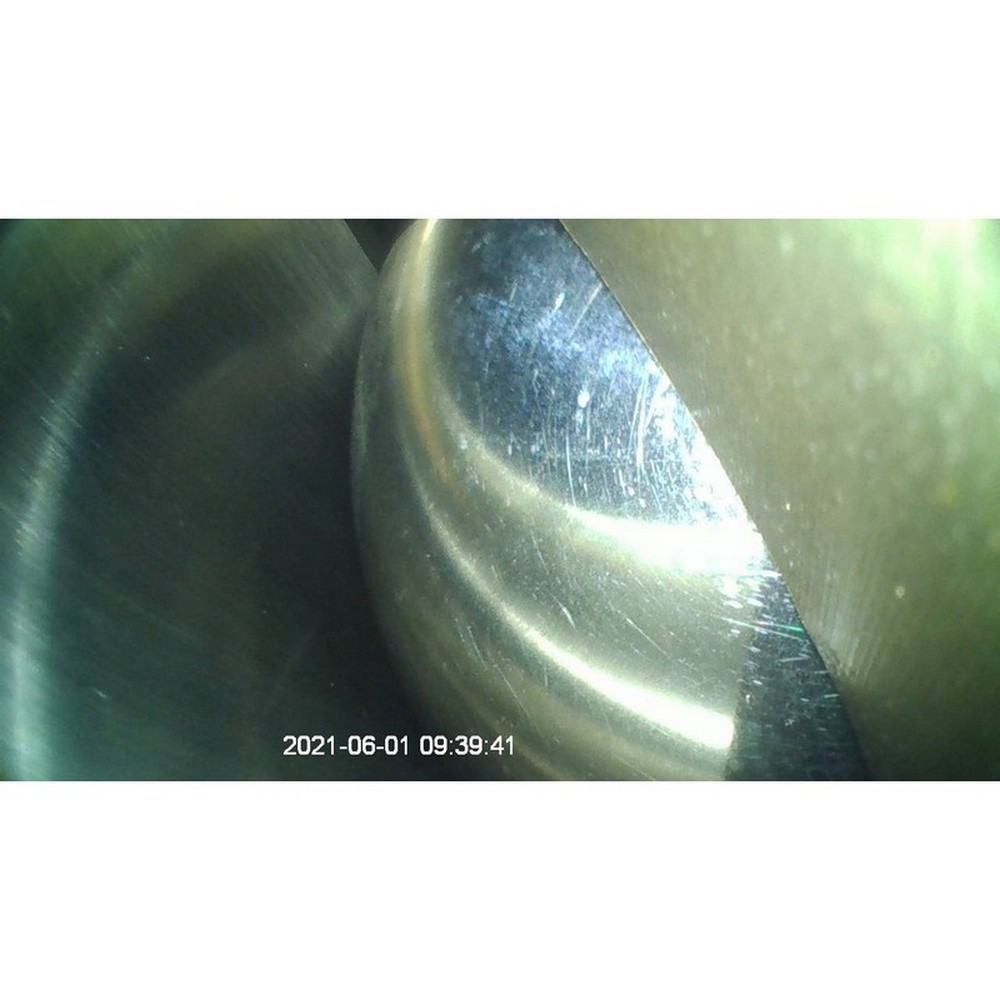

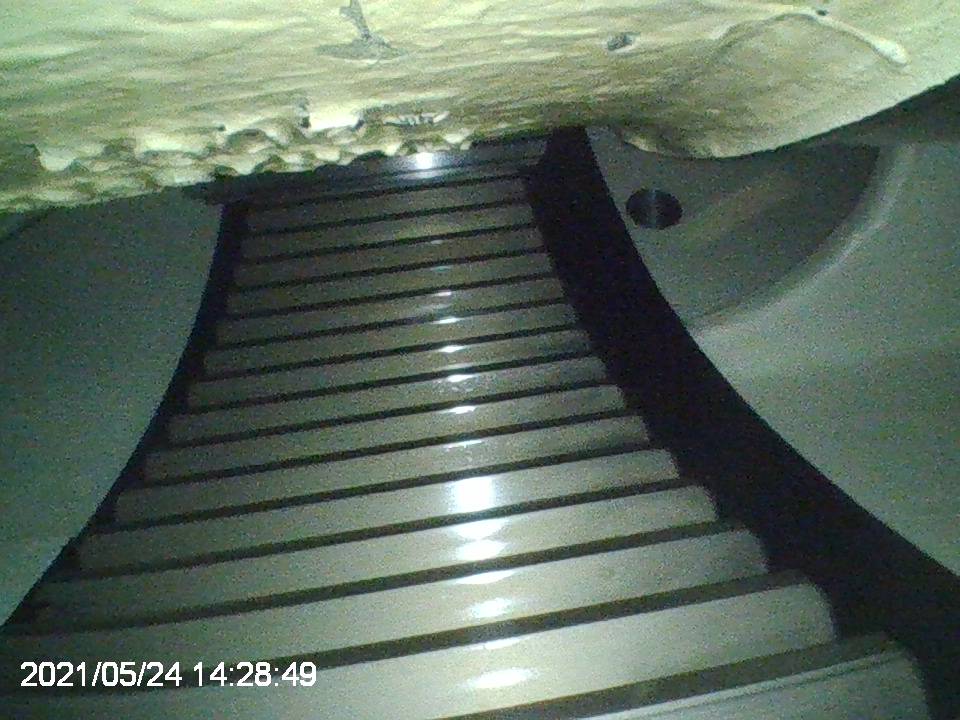

The industry’s leading customerized depth of field design can be tailored to different depth of field according to specific application requirements. For example: the depth of field can observe more tooth surface and the inside of the bearing roller, without cumbersome replacement of different depths of field Optical lens.
Typical Depth Of View (DOV) range options as follows: 3mm-80mm,5mm-100mm,8mm-150mm,10-200mm, customized requirements acceptable.
Suitable for different Industrial sector
Reduce potential downtime for maintenance and personal injury
Provide maximum value for asset managers
Aerospace
· Turbine and engine · Combustion chamber
· High and low pressure compressor · Wing, fuel tank
· Synthetic materials and components, etc.
Petrochemical

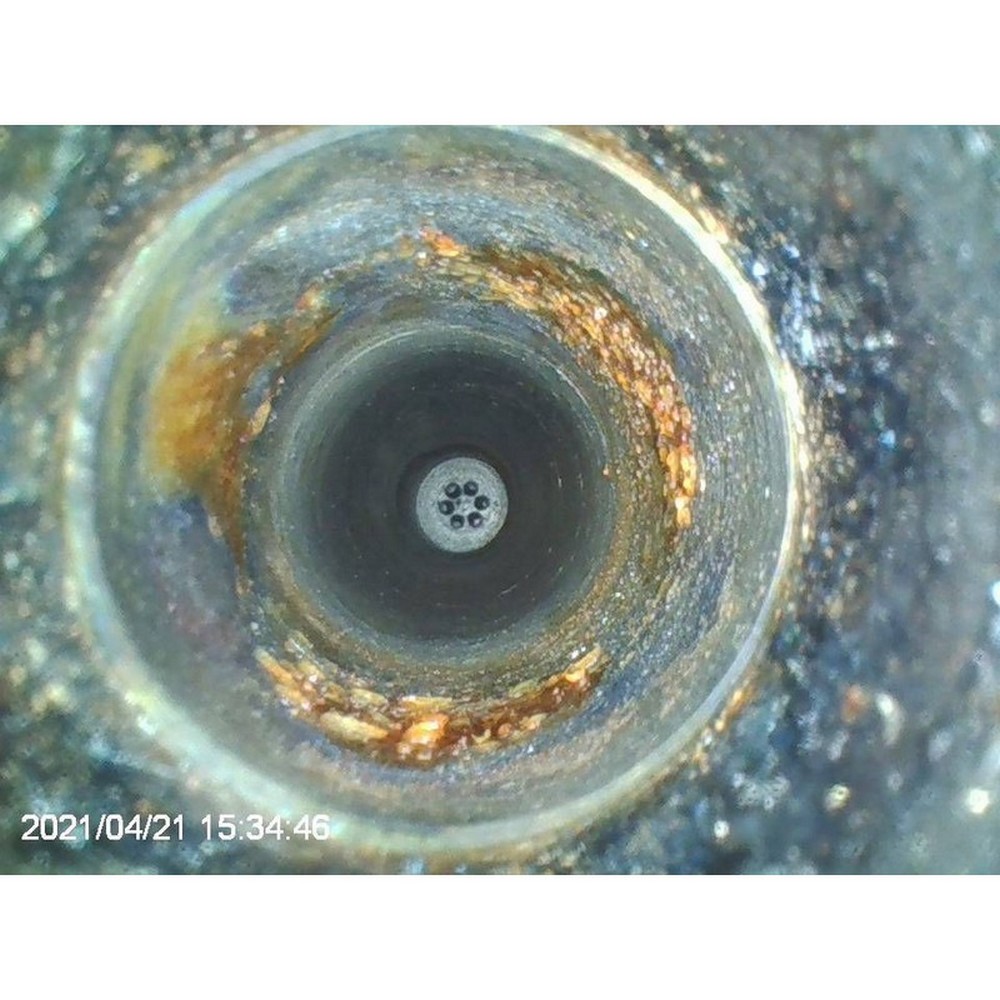

· Boiler plant, pressure vessel · Pressure pipeline, process pipeline · Reactor, heat exchanger
Power generation
· Excess and foreign matter grabbing · Turbine blade inspection
· Generator internal inspection
· Main steam pipeline, condenser
More industry applications
· Water pump
· Engine · Generator · Gearbox · Pipeline
· Turbine blades · Compressors
